| Model |

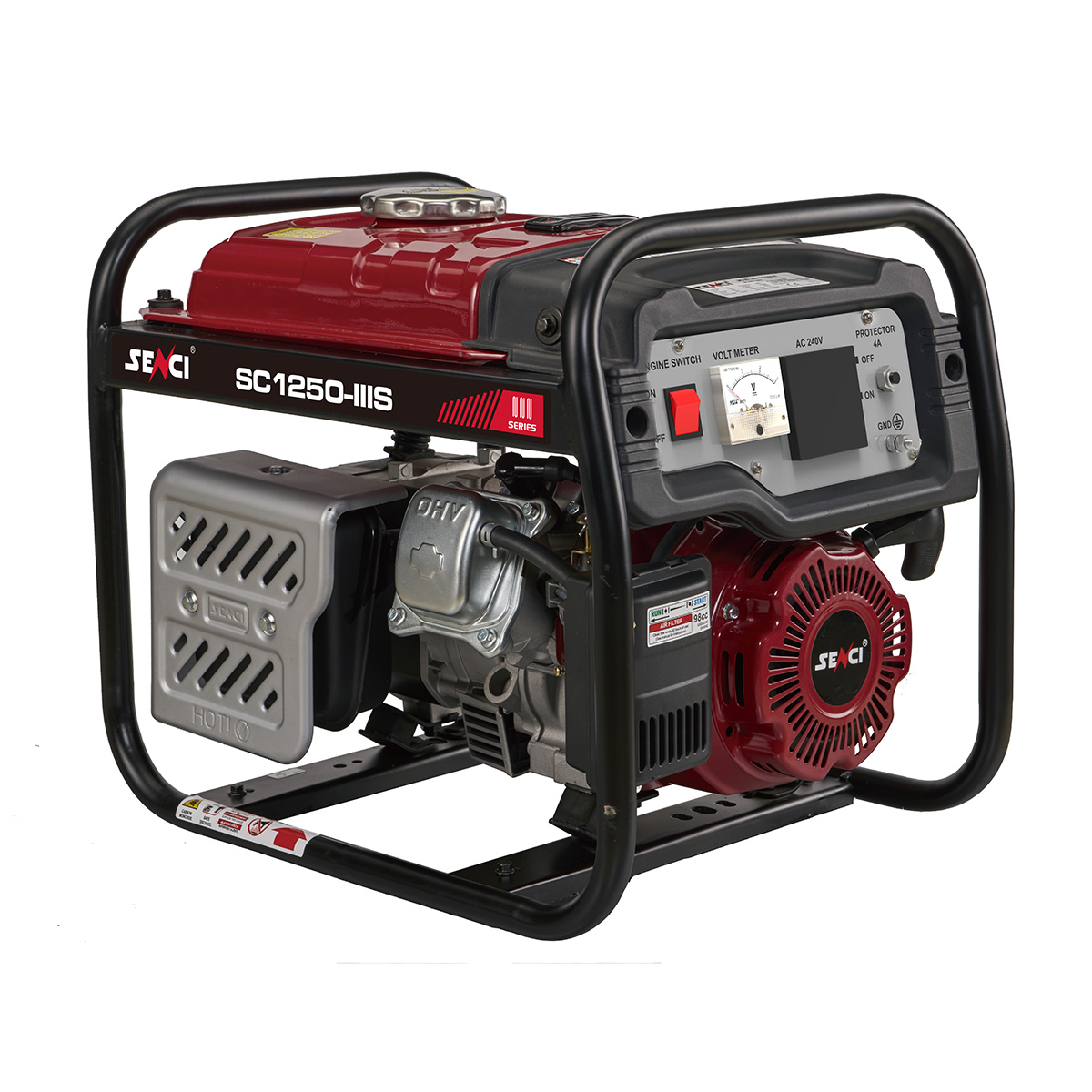

SC1250-III |

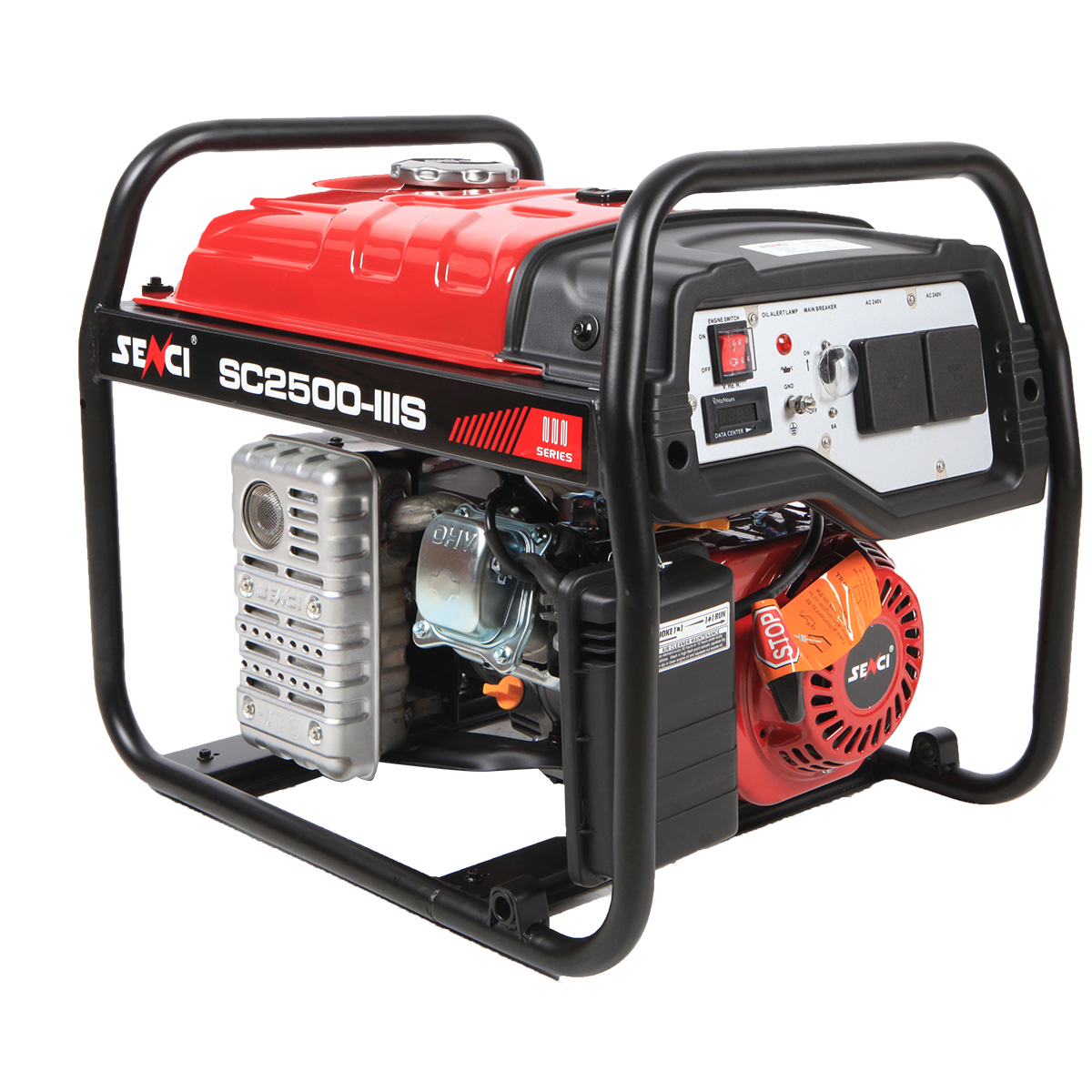

SC2500-III |

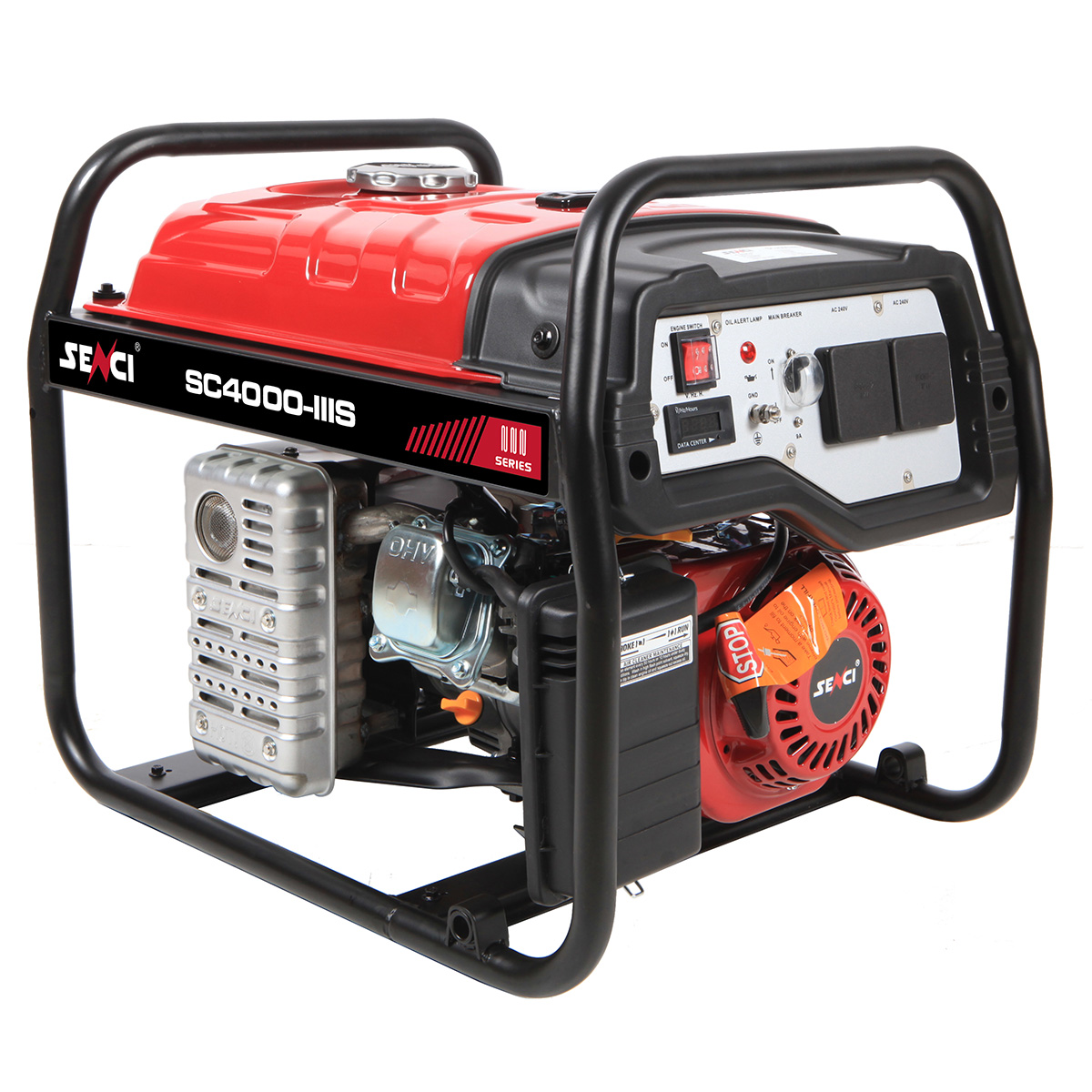

SC4000-III |

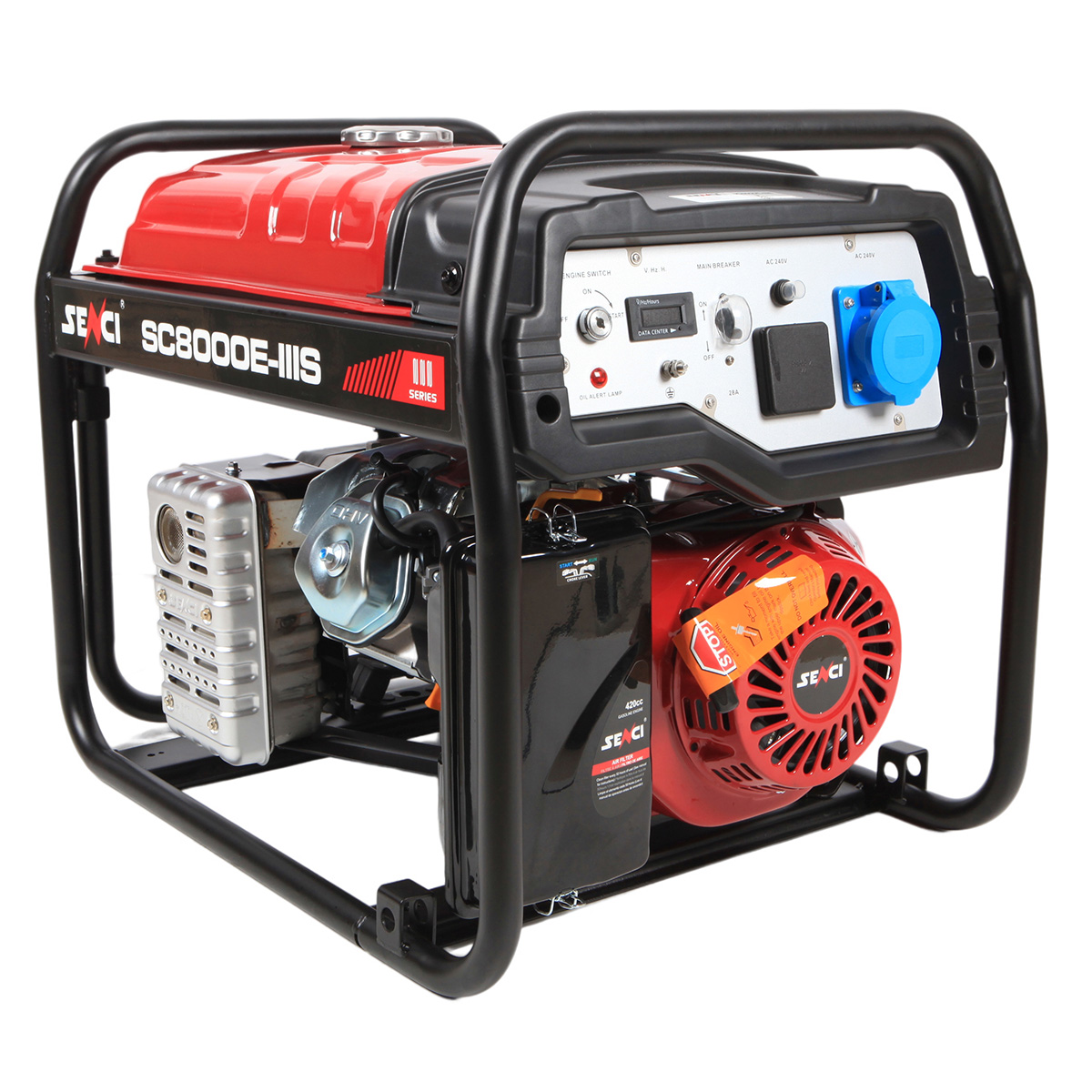

SC8000E-III |

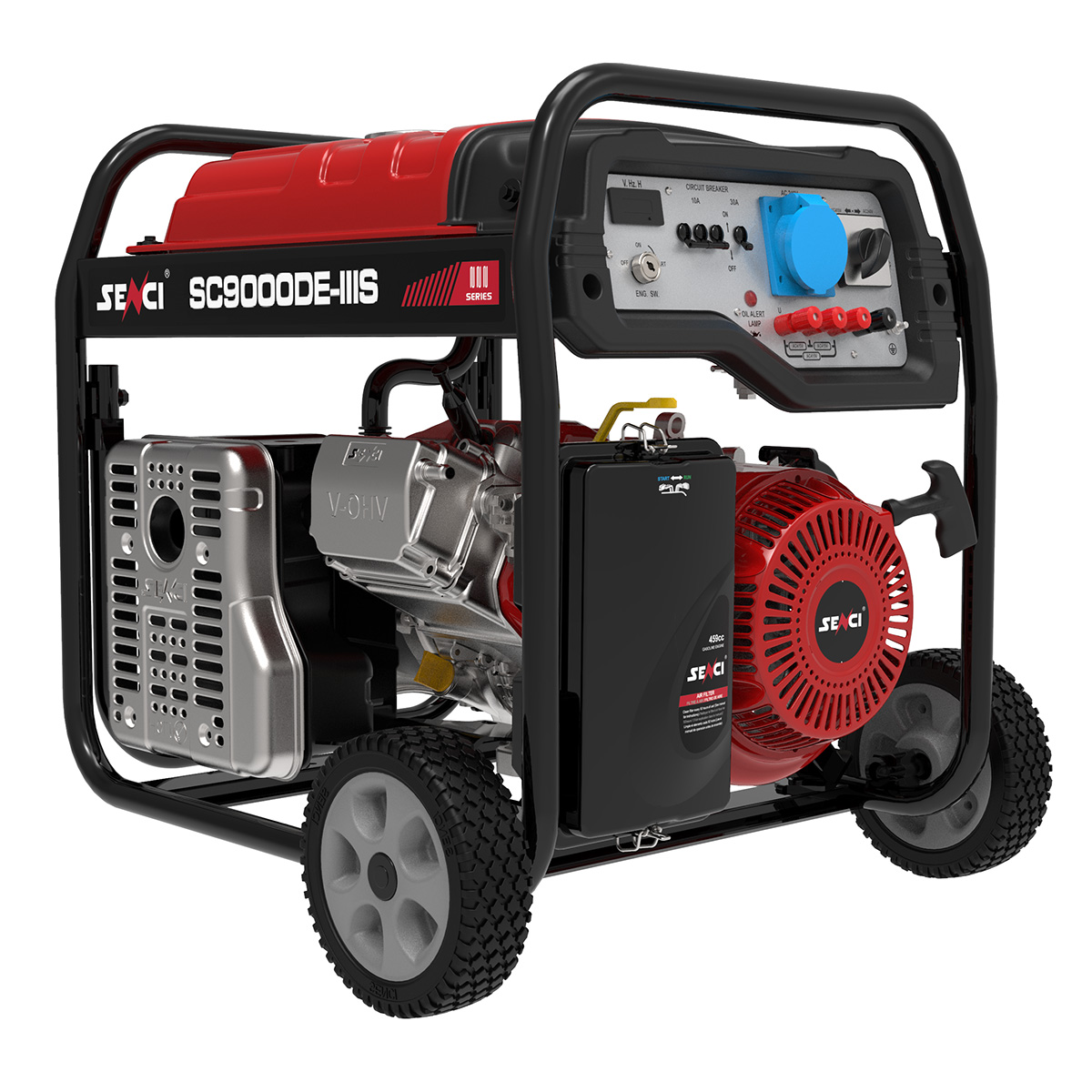

SC9000DE/3 |

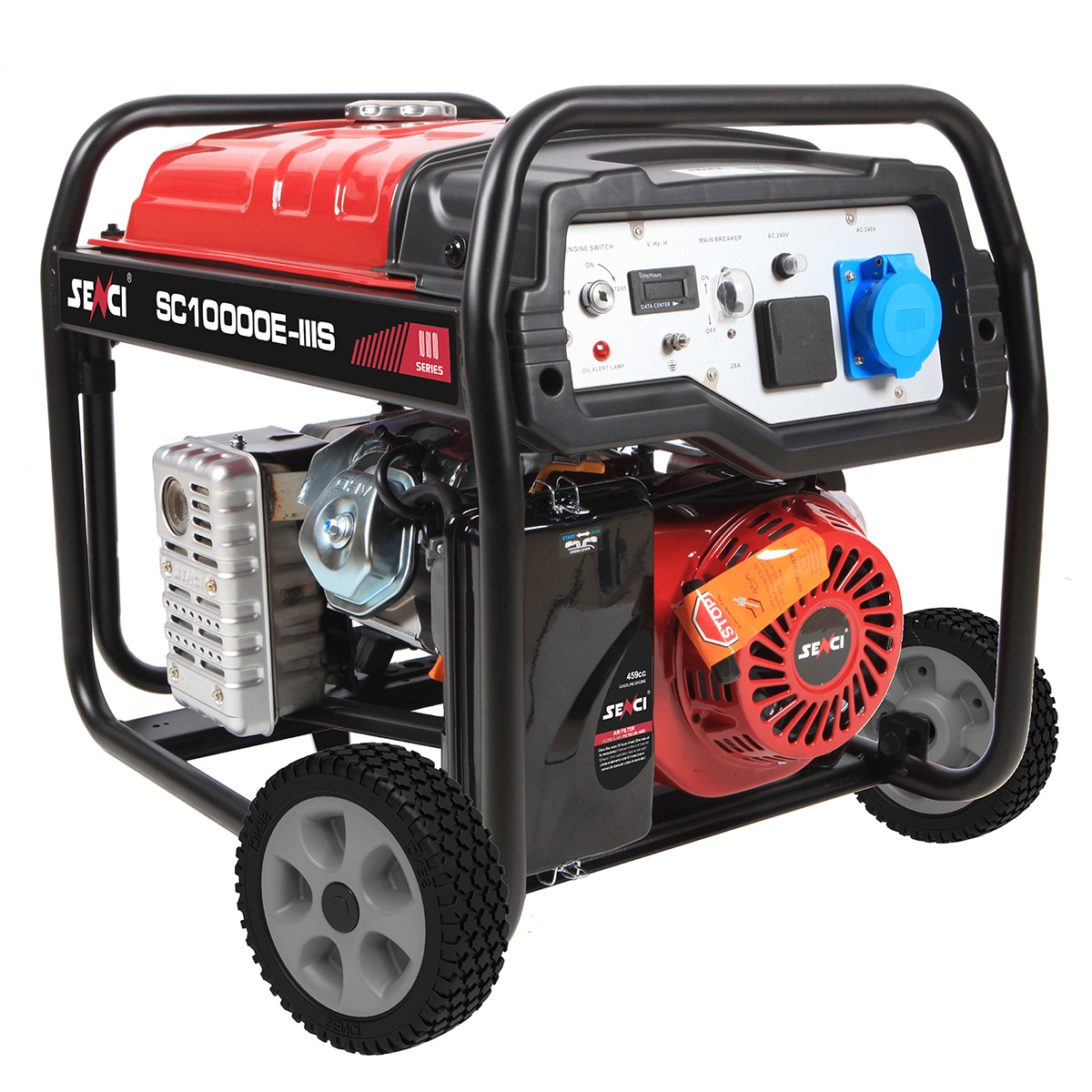

SC10000E-III |

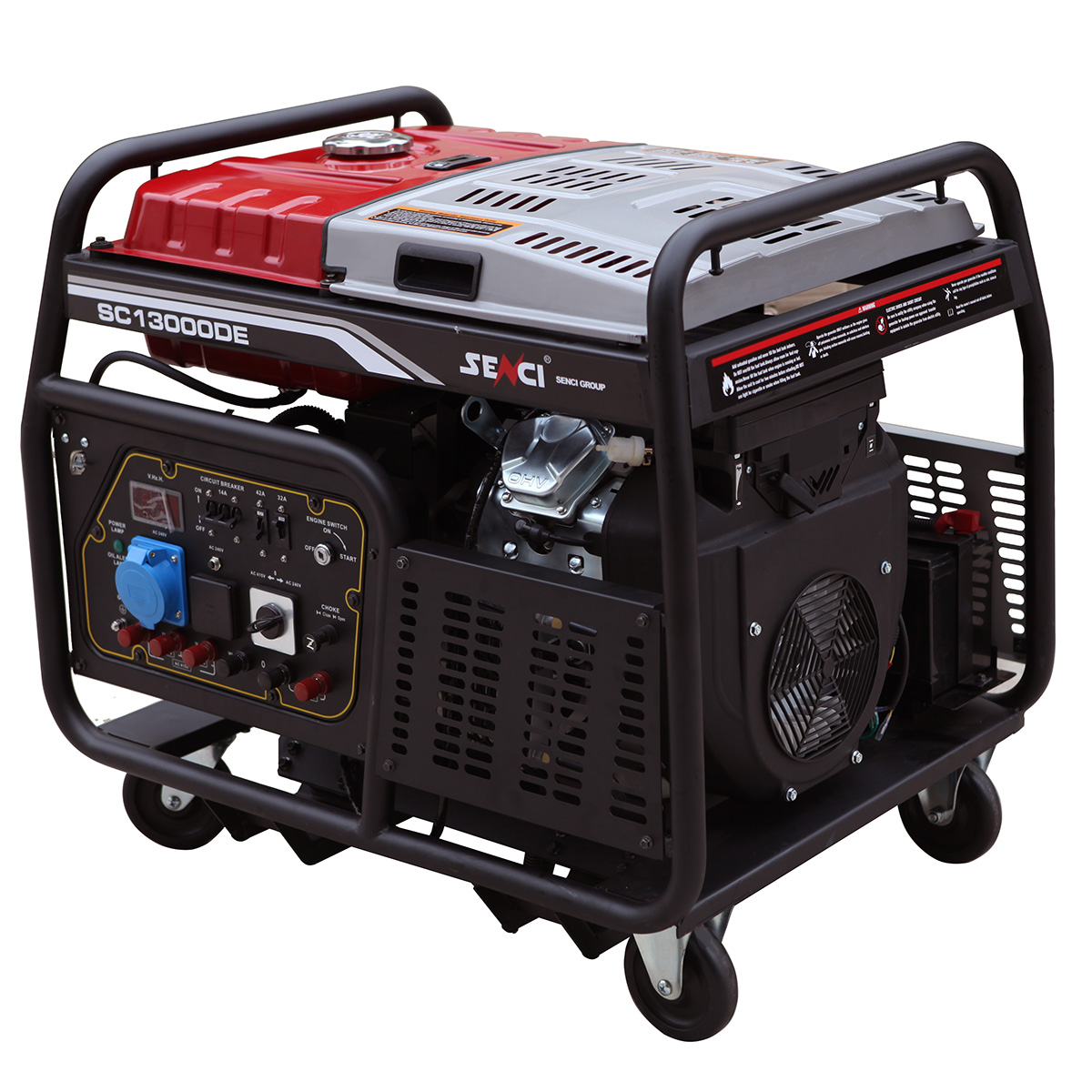

SC13000DE/3 |
|---|---|---|---|---|---|---|---|
| Engine Model |
SC156F (3HP) |
SC168FB (6.5HP) |
SC230 (7.5HP) |
SC190FD (14HP) |
SC460 (16HP) |
SC460 (16HP) |
2V78F (24HP) |
| Starting System |
Recoil |
Recoil / E-start |
E-start |
||||
| Displacement (cc) |
98 |
196 |
223 |
420 |
459 |
459 |
688 |
| Compression Ratio |
8.5:1 |
8.5:1 |
8.5:1 |
8.5:1 |
8.5:1 |
8.5:1 |
8.5:1 |
| Rated Frequency (Hz) |
50 |
||||||
| Rated / Max. Power (Kw) |
0.8 / 1.0 |
2.0 / 2.2 |
3.2 / 3.5 |
6.5 / 7.0 |
7.0 / 8.0 |
7.0 / 8.0 |
10 / 11 |
| Rated Voltage (V) |
240 |
240 |
240 |
240 |
240 / 415 |
240 |
240 / 415 |
| Fuel Tank Capacity (L) |
6 |
15 |
15 |
25 |
25 |
25 |
30 |
| Fuel Consumption (100% Load) |
0.78 L/H |
0.928 L/H |
2.4 L/H |
3.74 L/H |
3.95 L/H |
4.16 L/H |
5.325 L/H |
| Full Load Continuous Running Time (h) |
8.0 |
9.5 |
9.5 |
8.5 |
8.0 |
8.0 |
11.0 |
| 1/2 Load Continuous Running Time (h) |
12.5 |
12.5 |
14.0 |
13.0 |
8.5 |
7.0 |
13.0 |
| Noise Level @ 7m dB.(A) |
<97 |
<98 |
<98 |
<100 |
<100 |
<100 |
<98 |
| Dimension (H x W x L) (mm) |
510 × 390 × 450 |
620 × 490 × 530 |
620 × 490 × 530 |
725 × 550 × 610 |
725 × 550 × 610 |
725 × 550 × 610 |
990 x 660 x 940 |
| Net Weight (kg) |
28 |
42 |
50 |
88 |
90 |
94 |
215 |
