| Model | HONDA GX160 |
| Type | 4-stroke, Overhead Valve, Single-Cylinder, Horizontal Shaft |
| Displacement | 163 cm³ |
| Bore & Stroke | 68 x 45 mm |
| Compression Ratio | 8.5:1 |
| Net Power | 3.6kW (4.8HP) at 3,600 rpm |
| Continuous Rated Power | 2.9kW (3.9HP) at 3,600 rpm |
| Maximum Net Torque | 10.3 Nm (7.6 lbs ft) at 2,500 rpm |
| Ignition System | Transistorised magneto ignition |
| Starting System | Recoil (Electric Starter Optional) |
| Cooling System | Forced-air |
| PTO Shaft Rotation | Counter-clockwise (from P.T.O. side) |
| Fuel Consumption at Rated Power | 1.4 L/h at 3,600 rpm |
| Recommended Fuel | Unleaded |
| Lubrication System | Splash |
| Recommended Oil | 10W/30 API SG |
| Oil Capacity (litres) | 0.6 |
| Fuel Tank Capacity (litres) | 3.1 |
| Dimensions (LxWxH) | 312mm x 362mm x 346mm |
| Dry weight (kg) | 15.0kg |

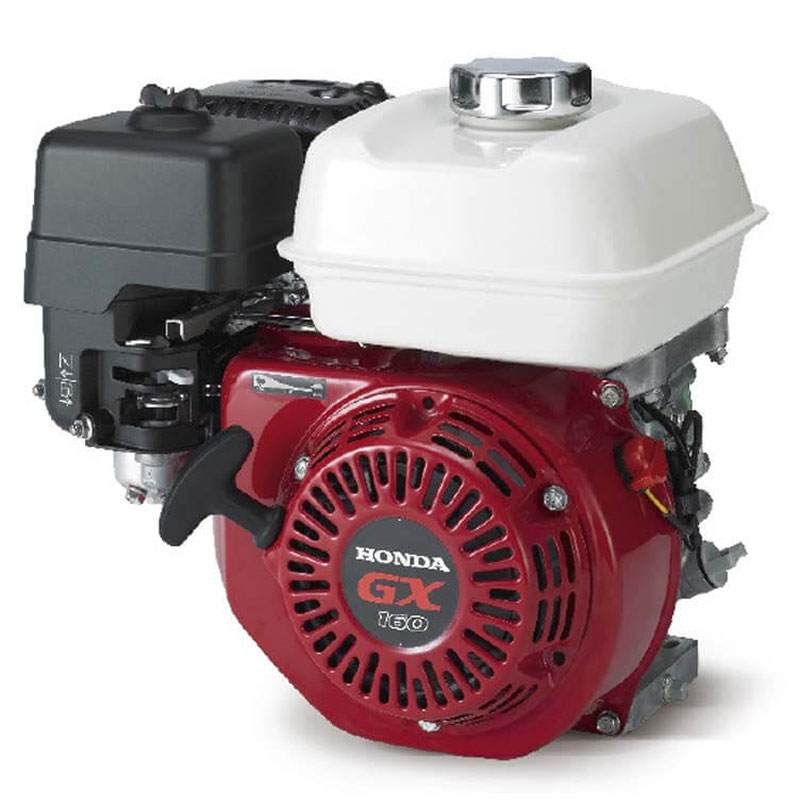

GX160
