| Model |

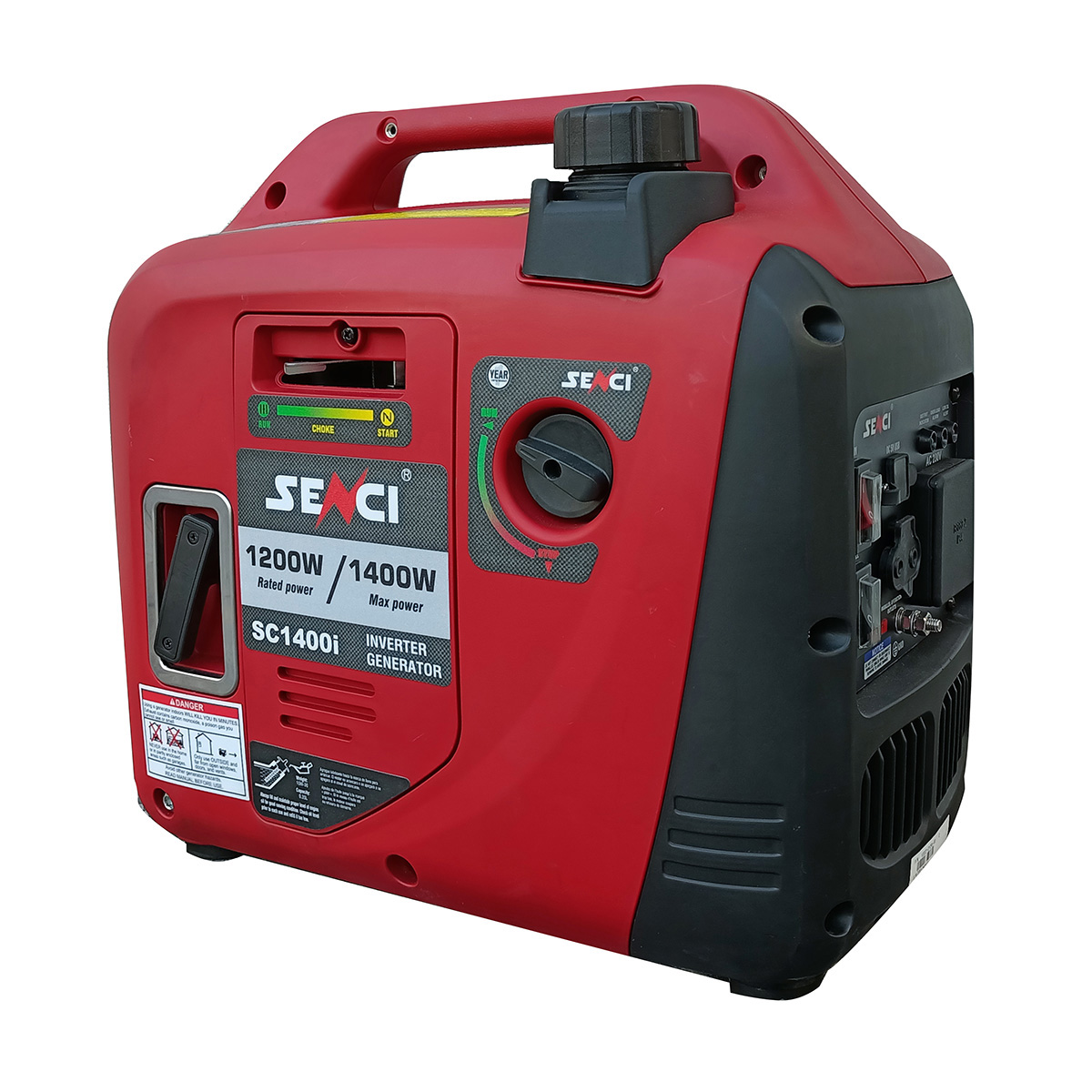

SC1400i |

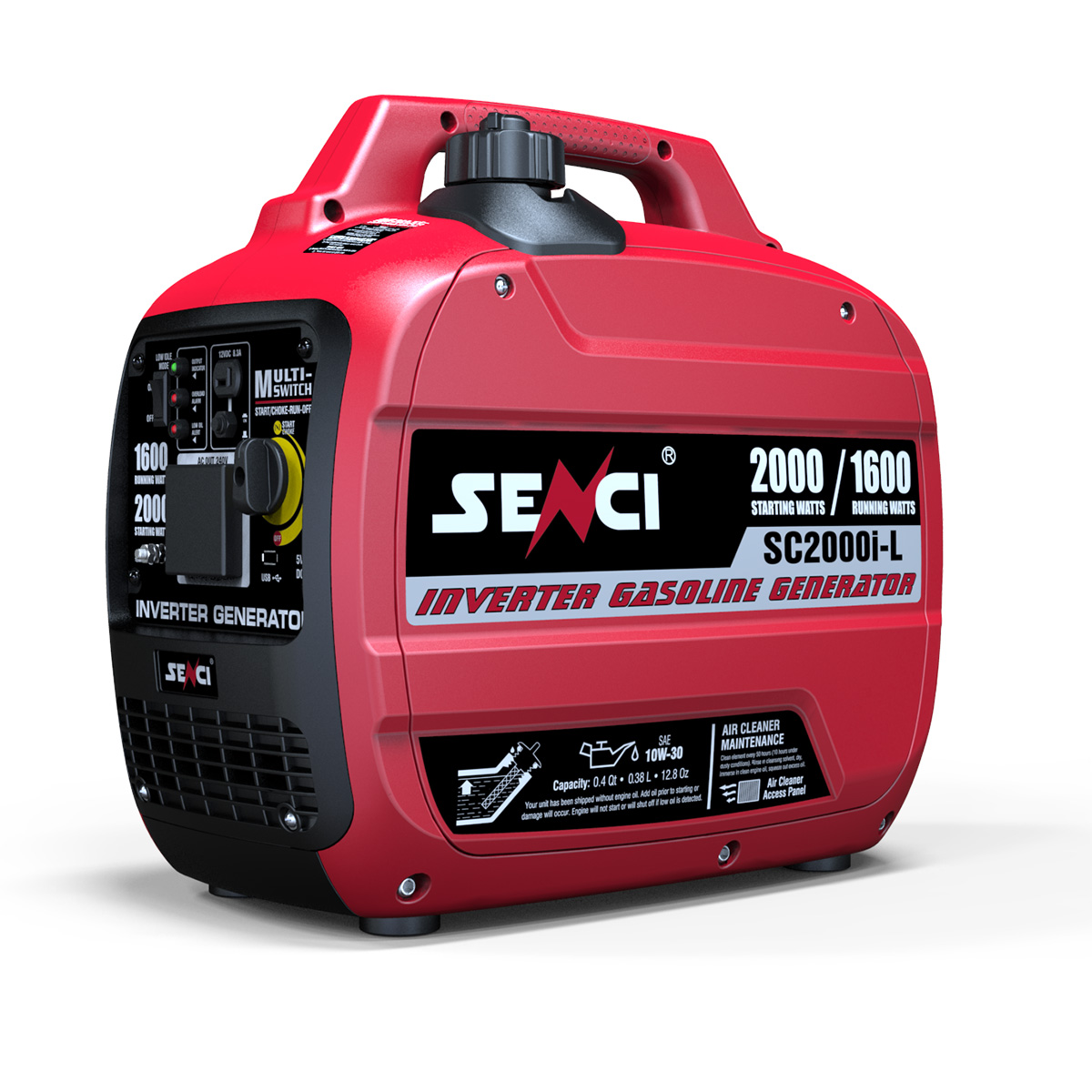

SC2000iL |

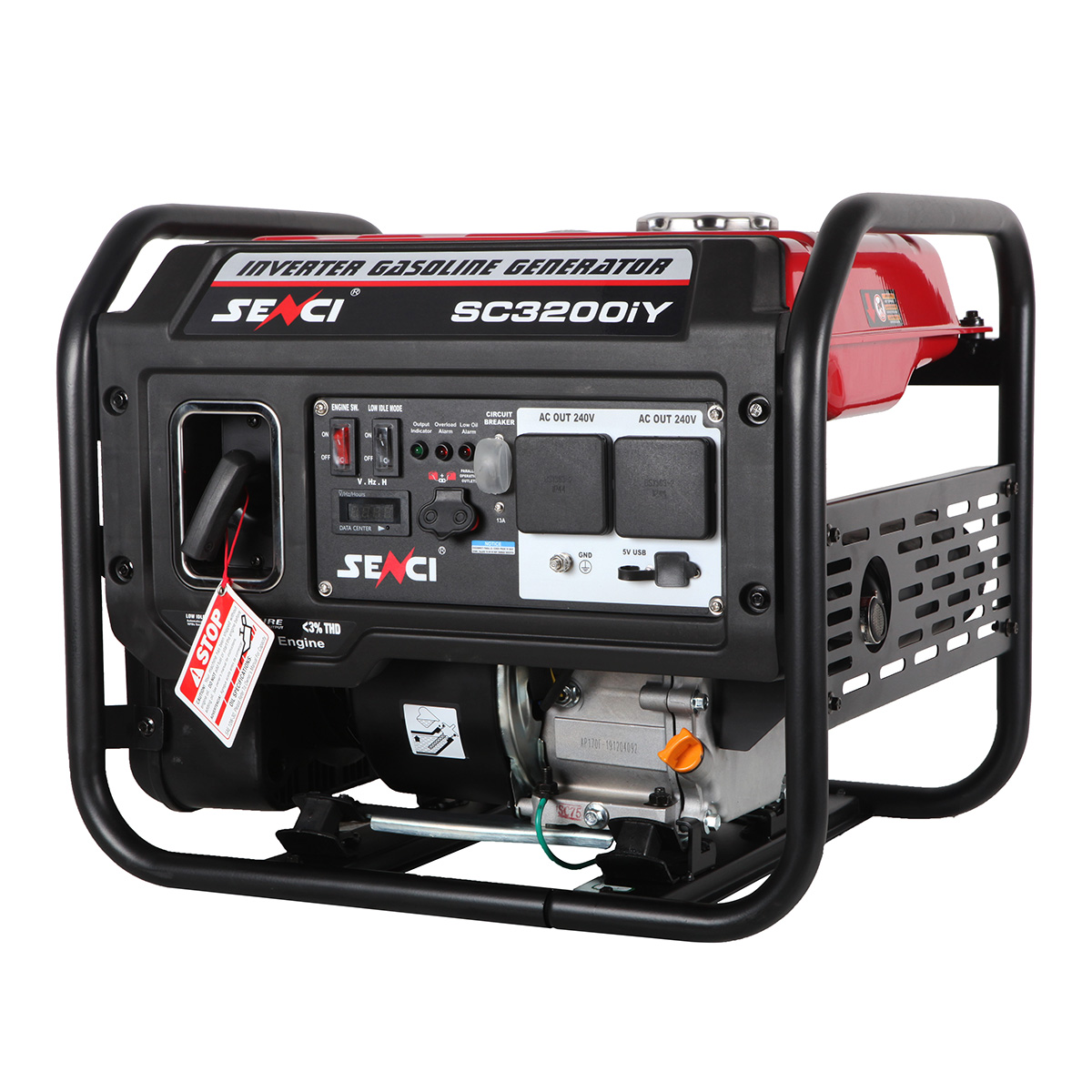

SC3200iY |

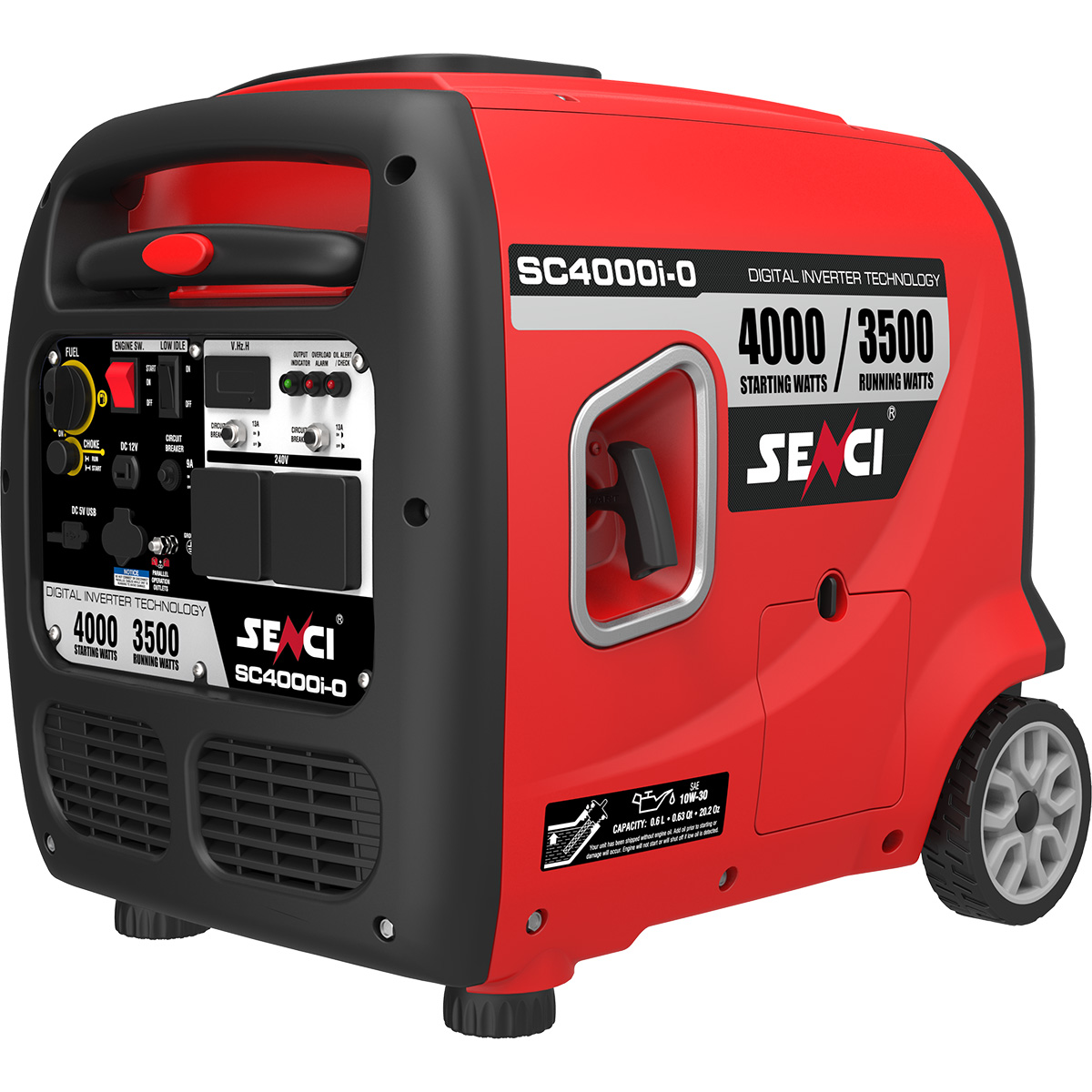

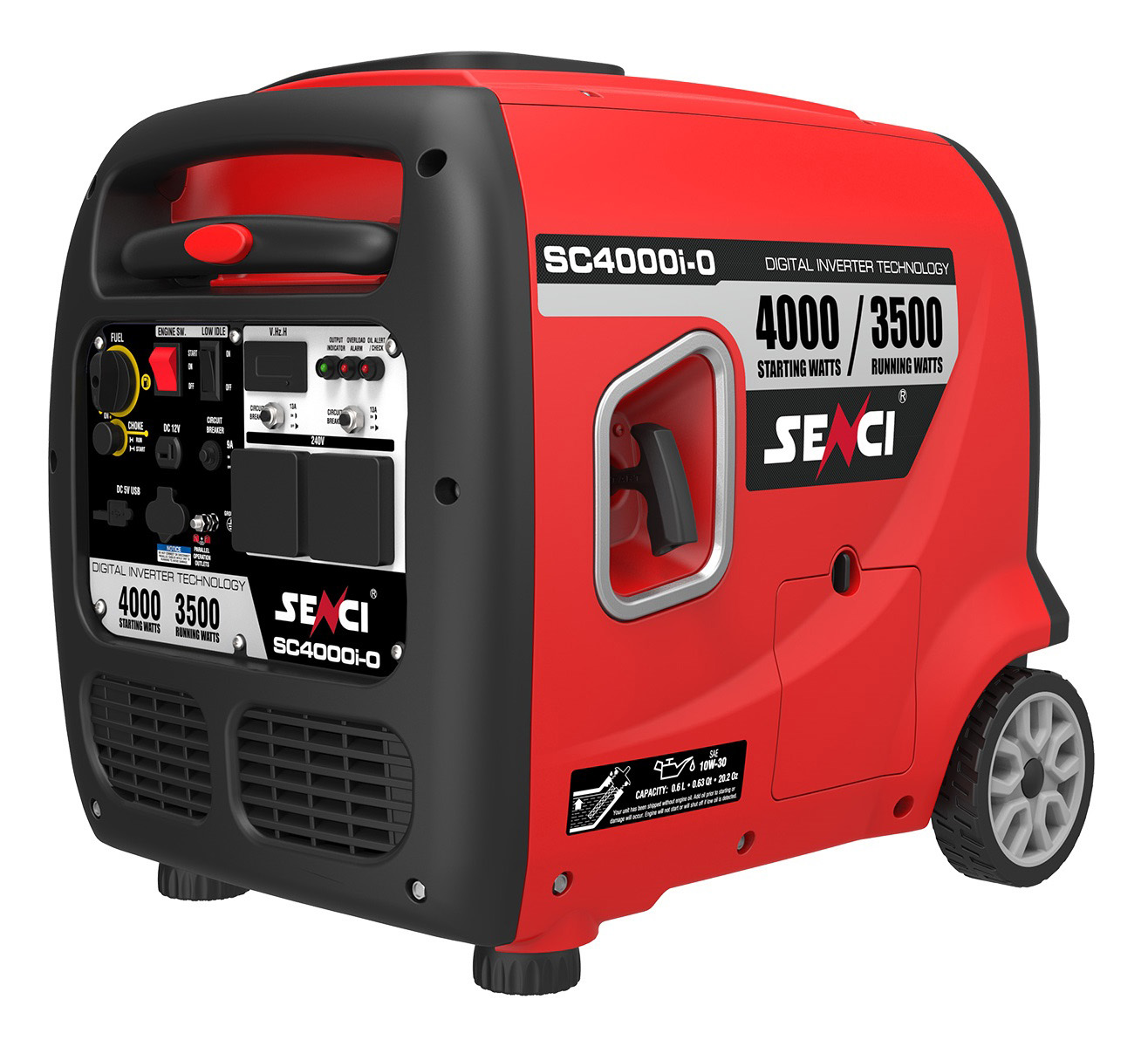

SC4000i |
|---|---|---|---|---|
| Engine Model |
SH60B |
AP149F |
AP170F |
SV230 |
| Starting System |
Recoil Start |
Recoil Start |
Recoil Start |
Recoil Start/E-Start |
| Displacement (cc) |
60 |
80 |
223 |
223 |
| Compression Ratio |
9:1 |
8.5:1 |
8.5:1 |
8.5:1 |
| Rechargeable Battery |
No |
No |
No |
Yes |
| Rated Frequency (Hz) |
50 |
50 |
50 |
50 |
| Rated Power (Kw) |
1.1 |
1.6 |
3.0 |
3.5 |
| Max. Power (Kw) |
1.2 |
1.8 |
3.2 |
4 |
| Rated Voltage (V) |
220 |
240 |
240 |
240 |
| Fuel Tank Capacity (L) |
2.5 |
4 |
12 |
12 |
| Fuel Consumption (100% load) |
0.83 L/H |
1.0 L/H |
1.98 L/H |
2.4 L/H |
| Full Load Continuous Running Time (h) |
3.0 |
4.0 |
7.0 |
5.0 |
| 1/2 Load Continuous Running Time (h) |
5.0 |
6.0 |
12.0 |
10.0 |
| Noise Level @ 7m (dB.(A)) |
<68 |
<61 |
<68 |
<60 |
| Dimension (H x W x L) (mm) |
430 x 252 x 400 |
530 x 315 x 490 |
555 x 475 x 480 |
725 x 535 x 555 |
| Net Weight (kg) |
12 |
21 |
35 |
57 |
| Model |

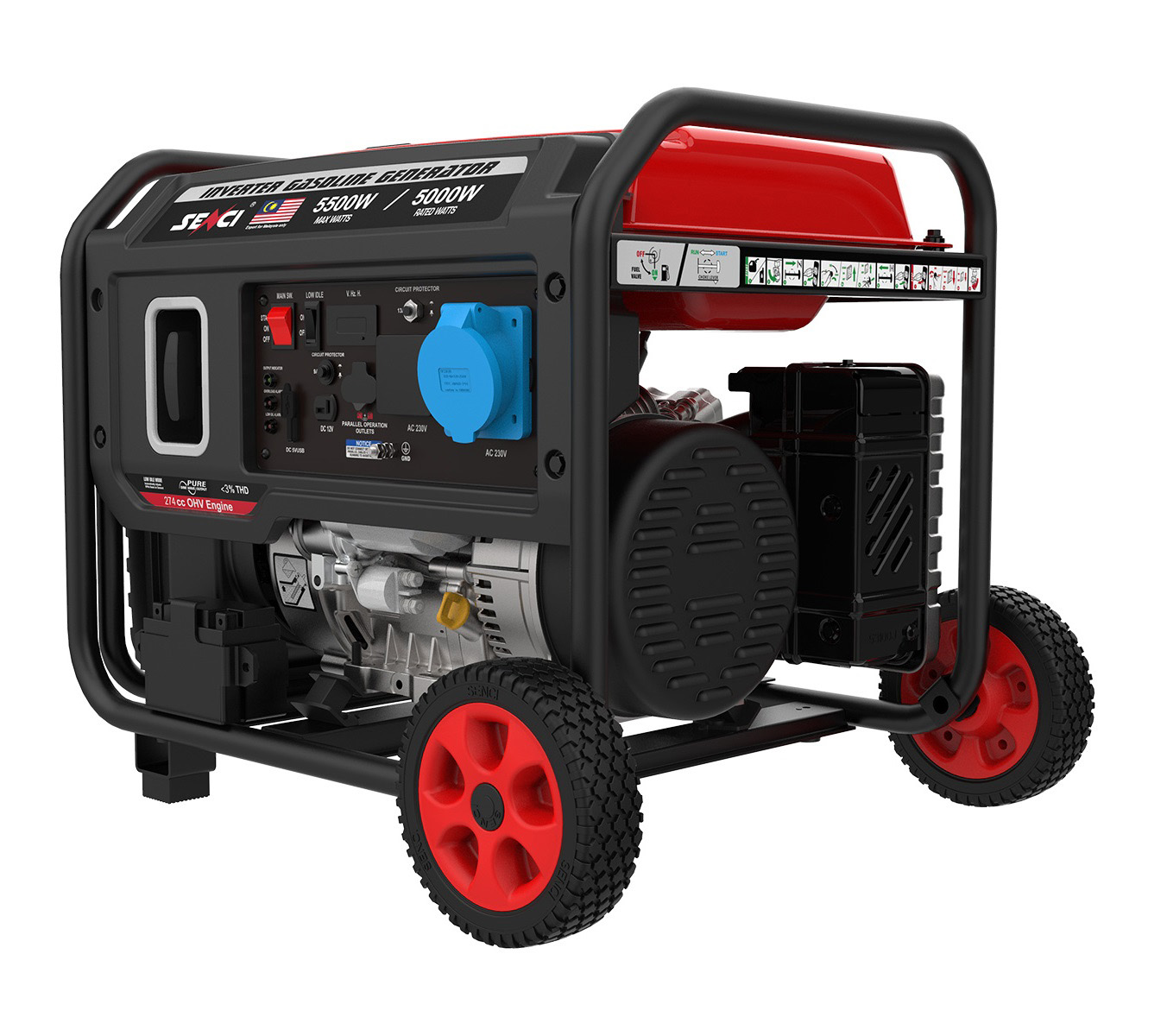

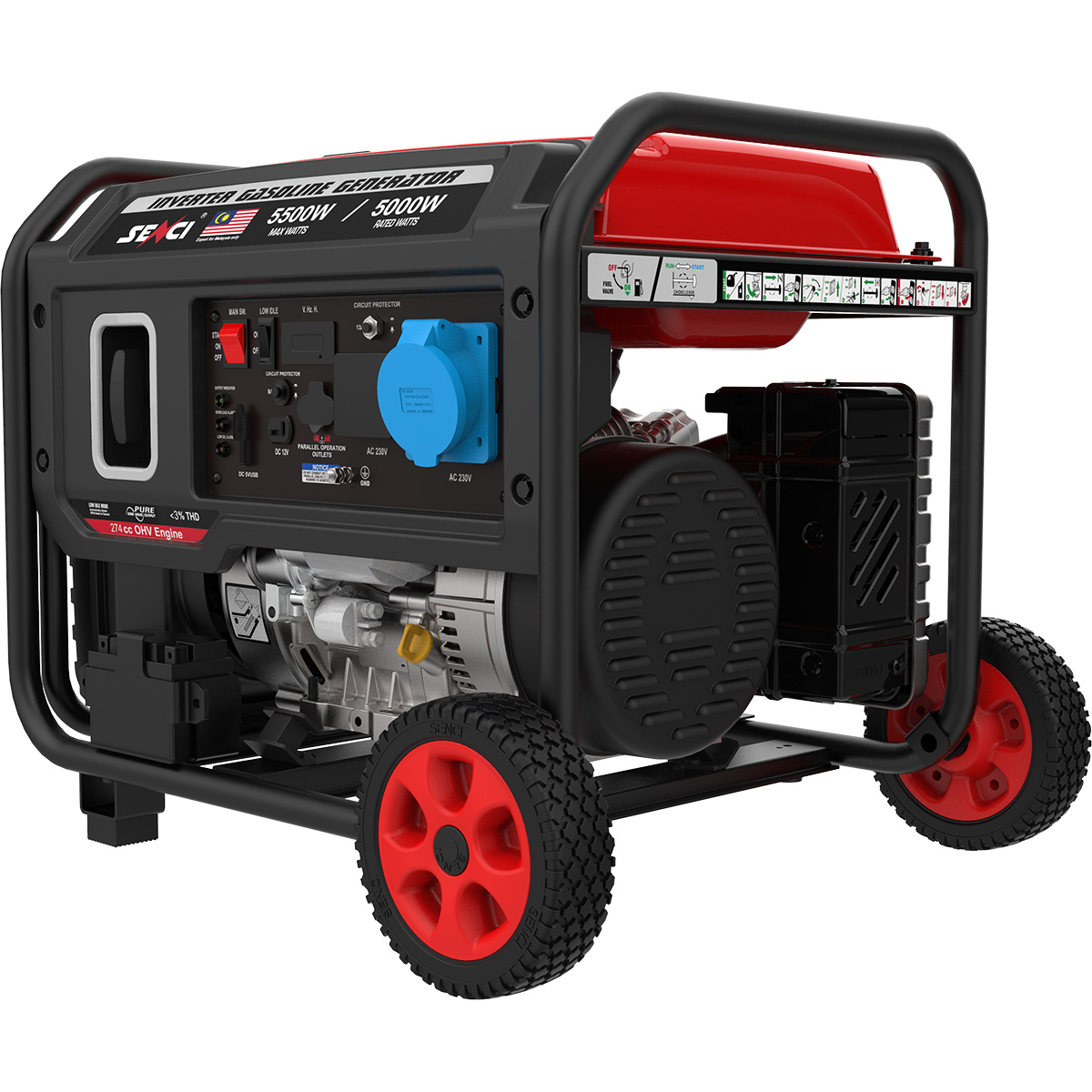

SC6000iY |
SC6000i |

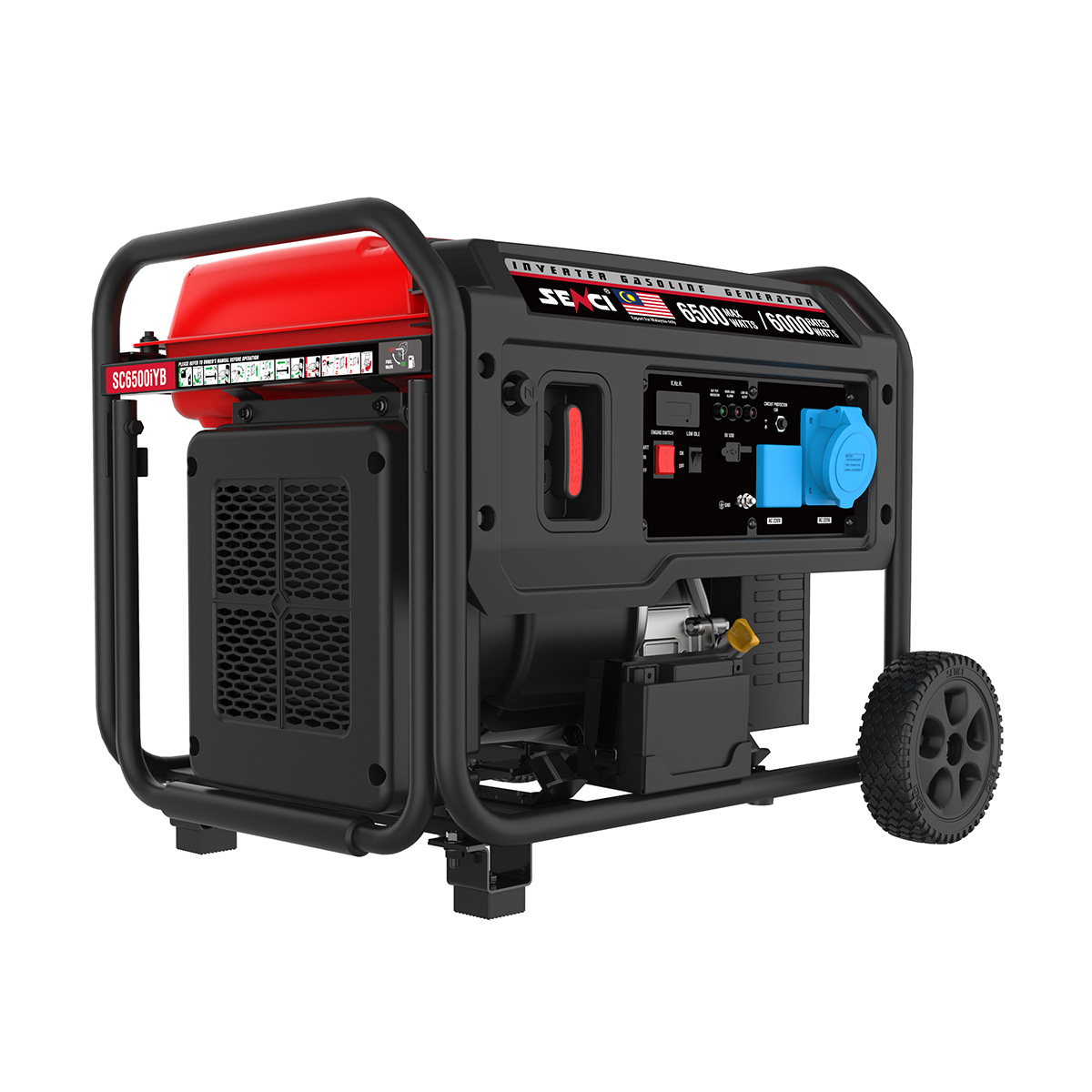

SC6500iYB |

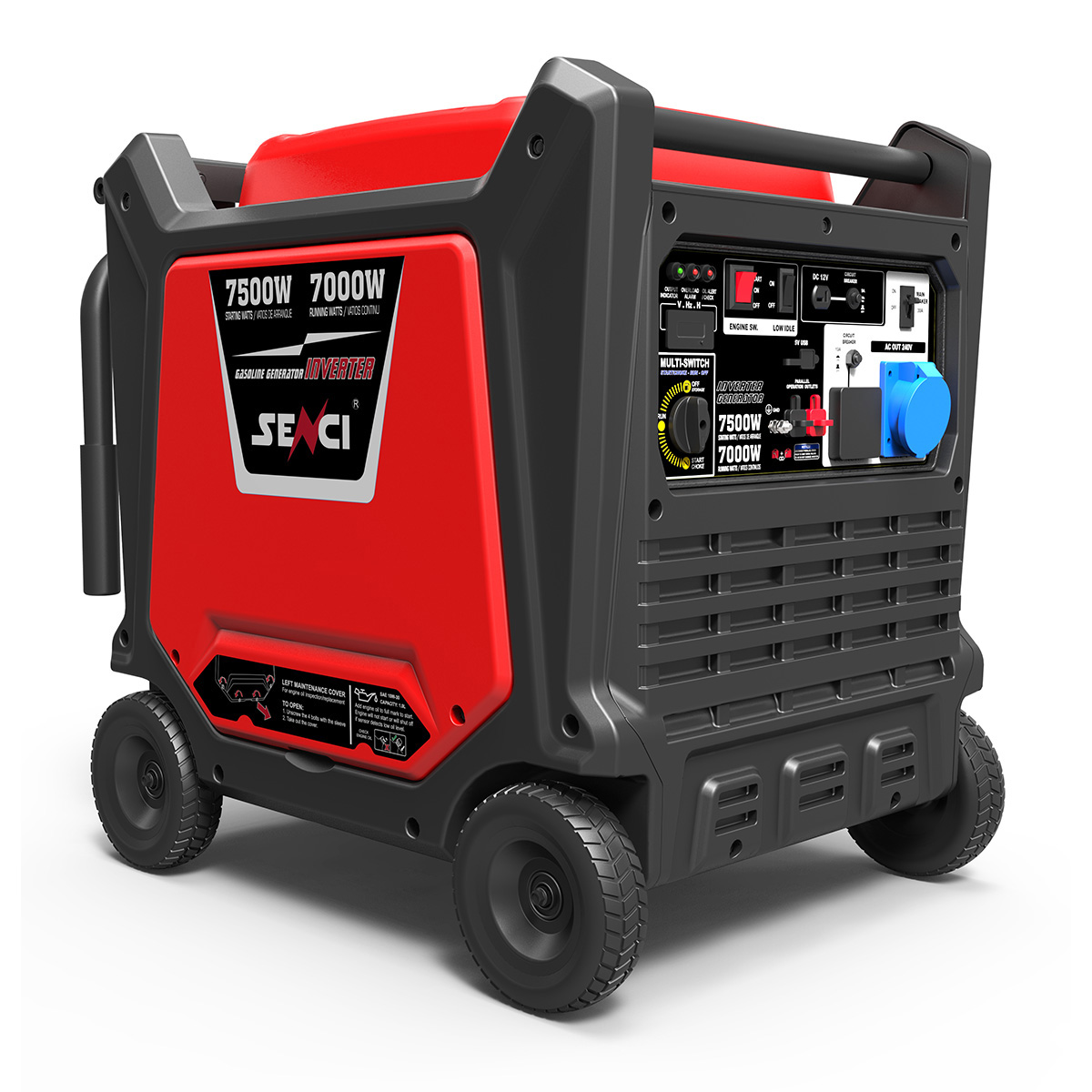

SC8000i |

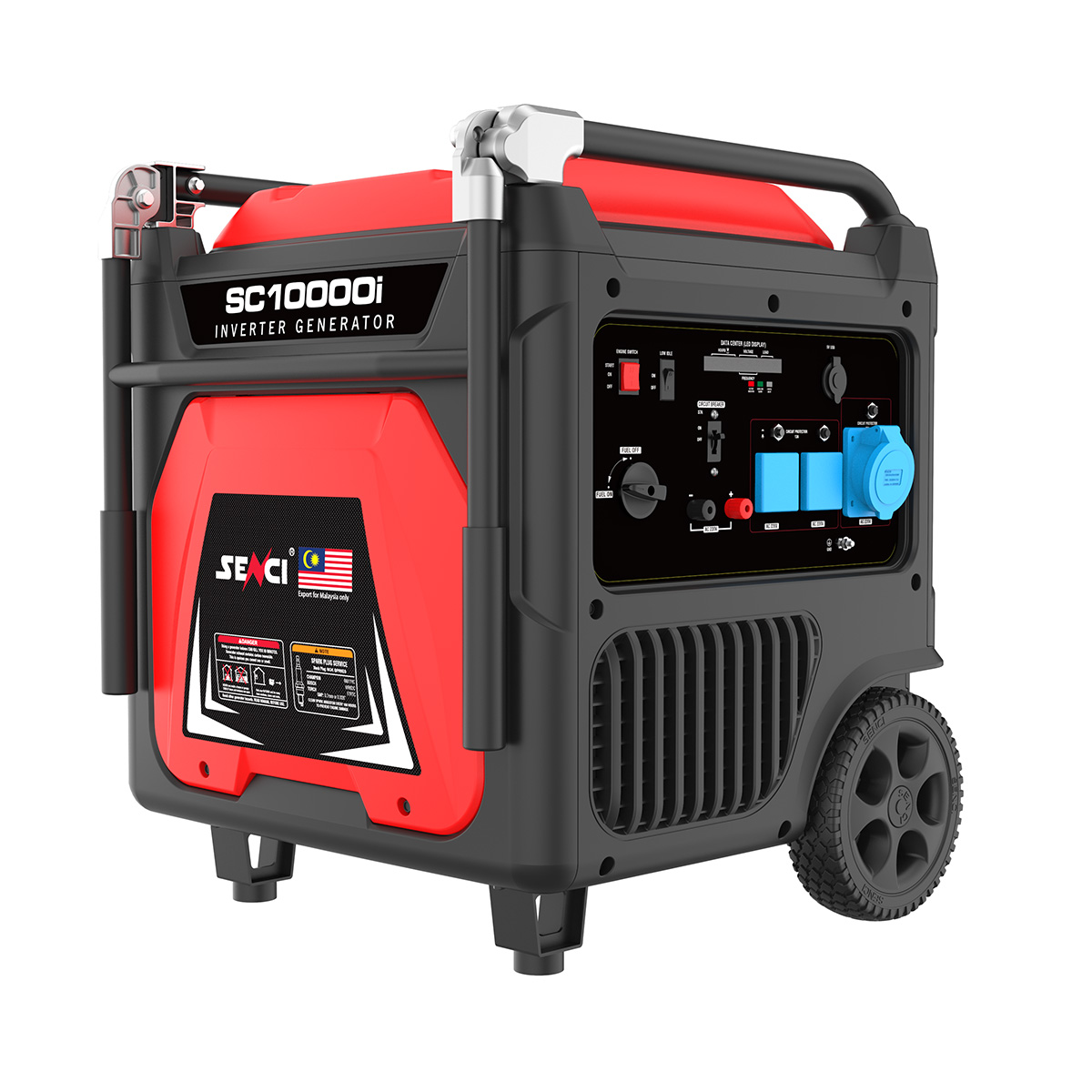

SC10000i |
|---|---|---|---|---|---|
| Engine Model |
SV275 |
SV320B |
SV320B |
SC460 |
SV460B |
| Starting System |
Recoil Start/E-Start |
Recoil Start/E-Start |
Recoil Start/E-Start |
Recoil Start/E-Start |
Recoil Start/E-Start |
| Displacement (cc) |
274 |
322 |
322 |
459 |
459 |
| Compression Ratio |
8.5:1 |
8.5:1 |
8.5:1 |
8.5:1 |
8.5:1 |
| Rechargeable Battery |
Yes |
No |
No |
Yes |
No |
| Rated Frequency (Hz) |
50 |
50 |
50 |
50 |
50 |
| Rated Power (Kw) |
5.0 |
5.5 |
6.0 |
7.0 |
8.2 |
| Max. Power (Kw) |
5.5 |
6.0 |
6.5 |
8.0 |
9.0 |
| Rated Voltage (V) |
230 |
220 |
220 |
240 |
220 |
| Fuel Tank Capacity (L) |
18 |
13.5 |
13.5 |
16 |
27 |
| Fuel Consumption (100% load) |
2.7 L/H |
4.1 L/H |
4.1 L/H |
4.5 L/H |
5.3 L/H |
| Full Load Continuous Running Time (h) |
6.5 |
4.5 |
5.0 |
6.5 |
7.0 |
| 1/2 Load Continuous Running Time (h) |
13.0 |
11.0 |
9.0 |
13.0 |
12.0 |
| Noise Level @ 7m (dB.(A)) |
<72 |
64 |
70 |
<63 |
63 |
| Dimension (H x W x L) (mm) |
610 x 495 x 460 |
710 x 560 x 605 |
635 x 530 x 525 |
720 x 575 x 665 |
710 x 690 x 800 |
| Net Weight (kg) |
52 |
57.5 |
50 |
100 |
96 |
