| Model | Vib. Head Dia. × Length | Vibration Board Size | Vibration | Power (Single Phase) | Weight (kg) |
| UM-ZF100 | – | 100(W) × 78(T) | 166Hz-200Hz (10,000-12,000 V.P.M) | output:280W | 5.2 |

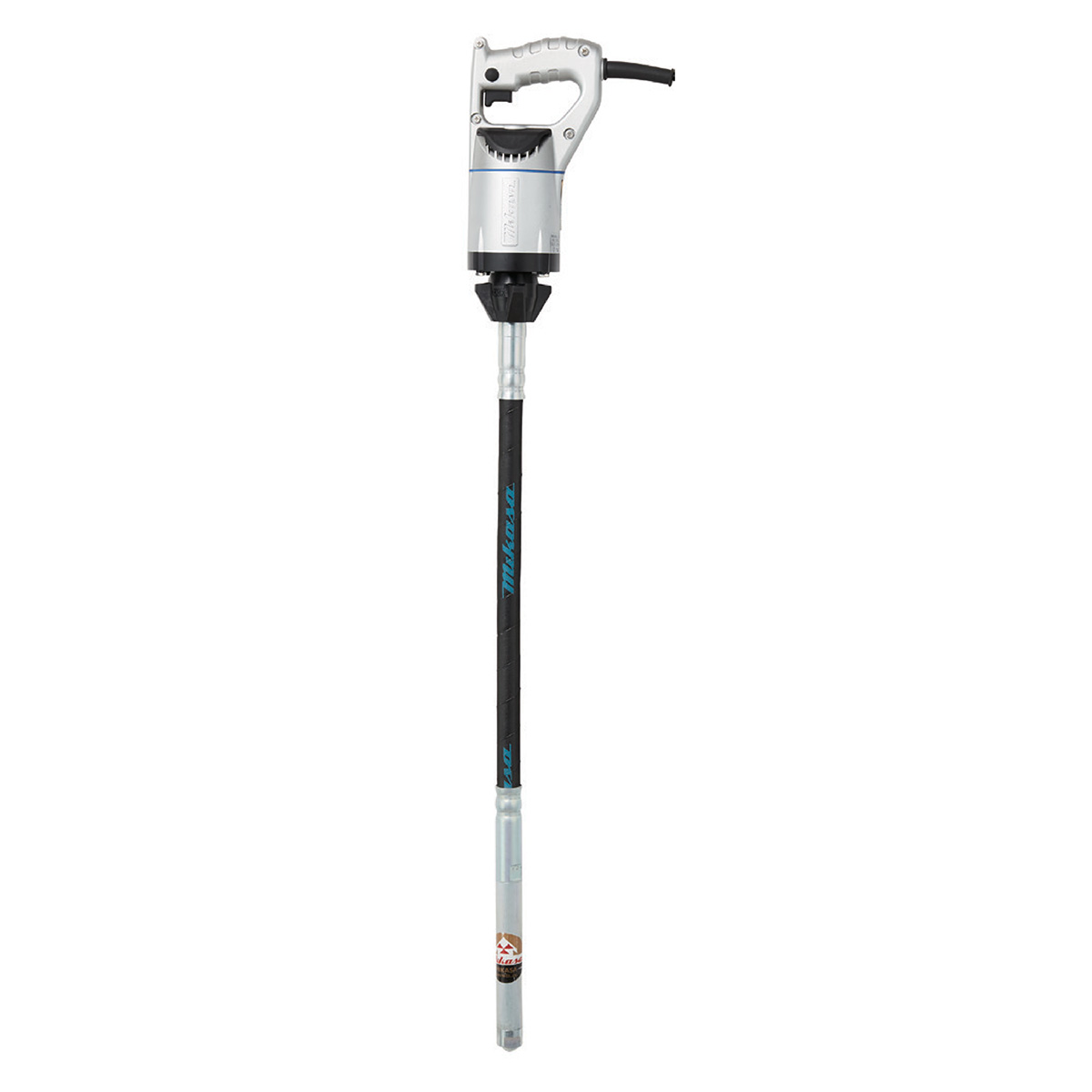

| UM-F28 | 28 X 770mm | 8mm | 200Hz-258Hz (12,000-15,500 V.P.M) | output:280W | 4.7 |

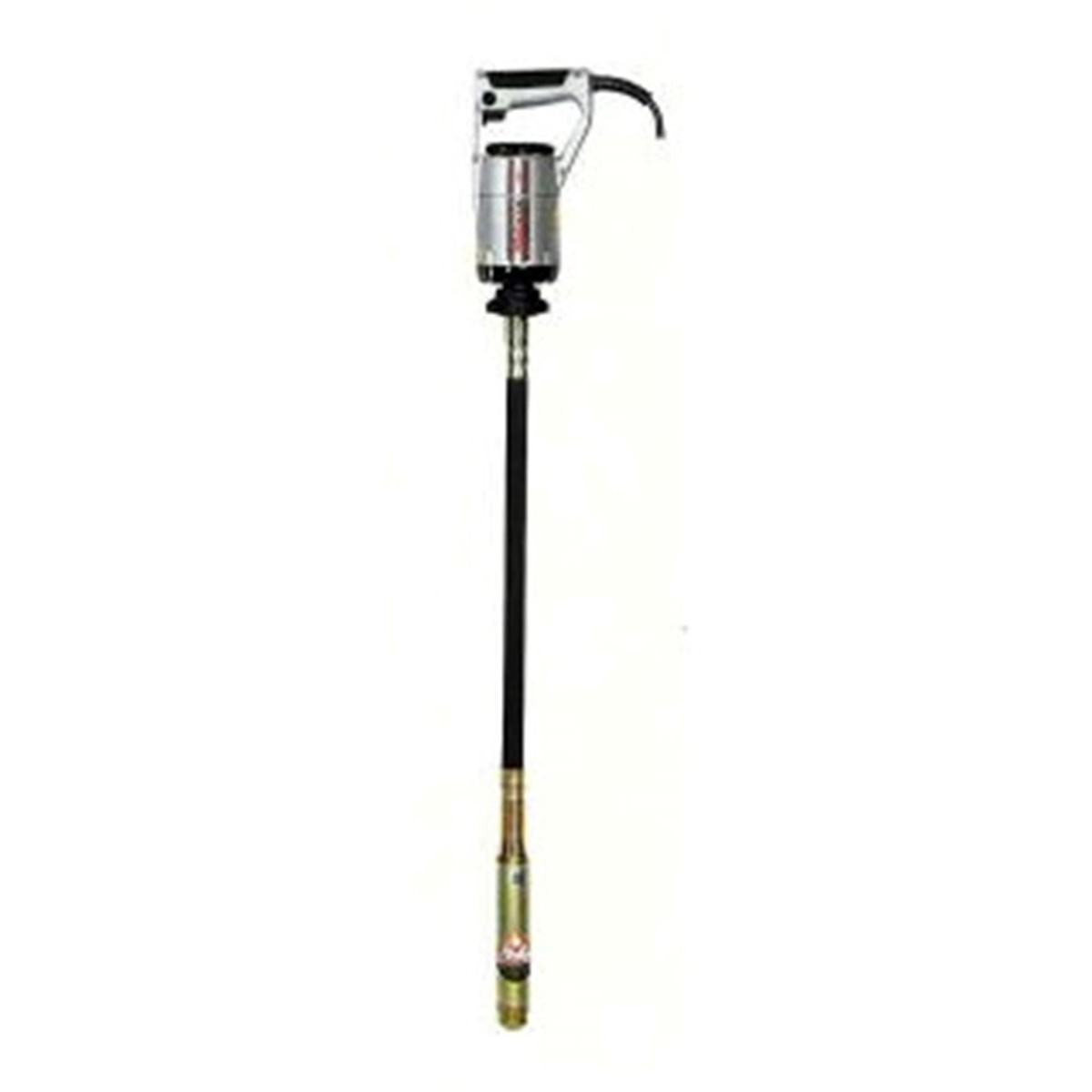

| MGX-38 | 38 X 780mm | 8mm | 200Hz-285Hz (12,000-15,500 V.P.M) | output:280W | 5.1 |

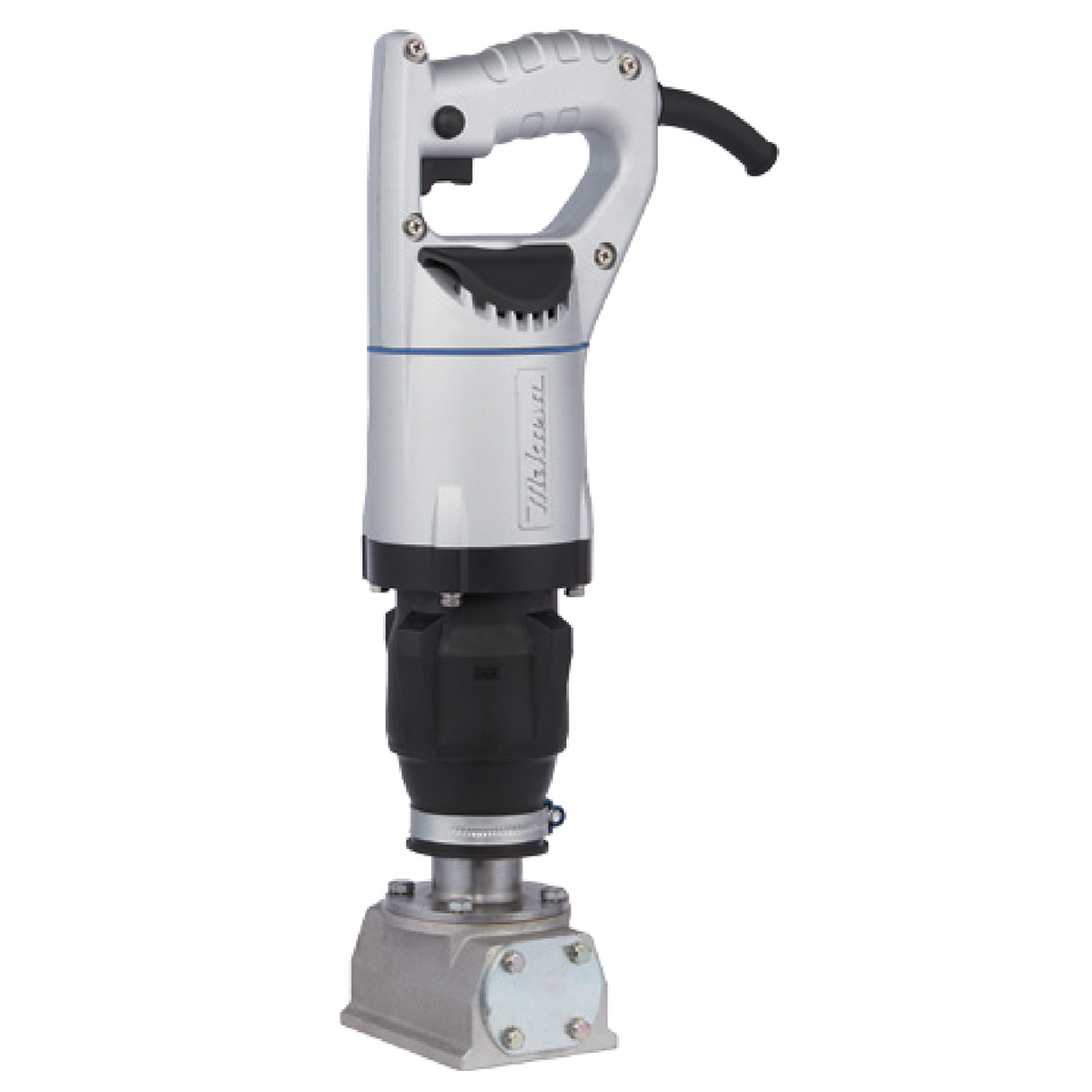

a) UM-ZF100
Portable Concrete Vibrator
- Improved hand arm vibration by separate design for motor and handle
- Improved durability for switch cover and switch lock cover
- New Handle Grip lighten the burden
- Easier maintenance by separate design for cord and cord protector
- Anti vibration rubber isolator for easy removal and maintenance of head/board
- UM-ZF100A is for external vibration, ideal for construction of walls, pillers, etc.
More Information
About brand
MIKASA is world leading manufacturer producing light-sized Compaction Equipment for the construction industry and other applications. Based in Tokyo, Japan, the company has assumed a dominant position over the past 40 years in its export business which is helping Mikasa products to take prominent position in USA, Europe, Asia and other countries. In Malaysia, Conweld is the Official Agent and we have the agreement to market & distribute for Mikasa’s products lines.
